Strip Heater
Strip Heaters are dependable and reliable flat heating elements – designed to provide efficient heat to flat surfaces from common to industrial applications. The seamless sheath design of Channel Strips makes them ‘dimensionally’ stable in milled slots.

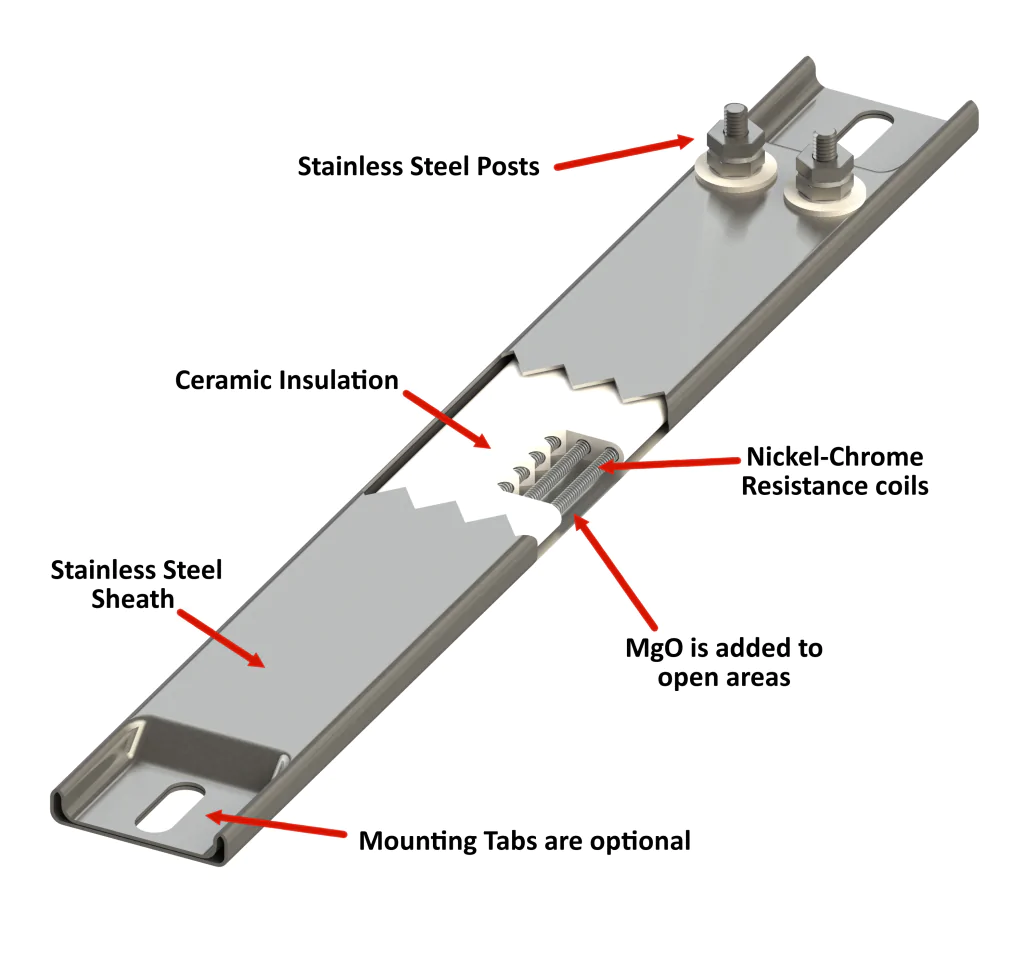

Channel Strips are constructed with a stainless steel rectangular tube with a 1.5” x .312” rectangular dimension and a wall thickness at .030″. The inner construction consists of wound nichrome resistance coil. The inner flexible wire is strung through ceramic insulator pieces that’s a reason we also know as for best Strip Heater Manufacturer. The coils are attached to the screw terminals, or high temperature lead wires of Strip Heaters, for a positive connection. MgO (magnesium oxide) is used to fill and pack open areas surrounding the coils. The MgO material helps increase the elements thermal conductivity and dielectric strength.
Deep Heaters is the Best Strip Heaters Manufacturer in Gujarat and Strip Heaters Exporter in India. Counted among the top Strip Heaters Supplier in Gujarat, Strip Heaters Wholesaler in Gujarat. we are constantly upgrading our resources to provide maximum customer satisfaction to our clients. We Give you Best Strip Heaters Price in Gujarat.
Strip Specifications and Tolerances:
- Strip dimensions: 1-1/2” x 5/16”
- Outer width:1-1/2″ ± .010
- Mounting Slot HOLE Size: 5/16” x ½”
- Thickness 5/16 ± .010
- Length tolerance: ± 1/16″ to 20″, ± 1/16″ over 20′
- Temperature Clamp-on surface 850°F (450°C)
- Max sheath temperature up to 1200°F (650°C)z
- Max Voltage: 480 VAC (depending on design parameters)
- Max Lead Voltage recommended at 240 VAC
- Max Amperage: 22 amps (for lead wire termination 10 amps)
- Max screw terminations 10-32 UNF-25 amp
- Wattage tolerance: +5% -10%
- Wattage Density (nominal) 45 w/in²
- Recommended Wattage Max clamped to part in 70°F ambient air (multiply by 75% if insulated)
Strip Mica Applications:
Ovens, Hot Plates, Clamp-on water heating, Coffee urns, Vacuum pumps, Vulcanizers, Autoclaves, Core baking ovens, Space Heating, Pre-Heaters, Food Warmers, Dies, Mold heating, Valve houses, Pipe lines, Process welding, Platens, Melting, Baking, Tank Heating, Incubators, Air Heating, Ink drying, Crane cabs, Sealing Bars, Load Bank resistors, and Packaging.
